Accurate and reliable
Smart road sensorMonitor the weather on and around the road.
Road surface temperature, air temperature, humidity humidity and dewpoint temperature are important parameters used to evaluate road conditions, monitor weather , and predict risk factors like black ice/ice on the road.
SRS1000 can be used for the effective road management and operation, safe driving and prevention of accidents especially during the winter season by measuring the parameters.

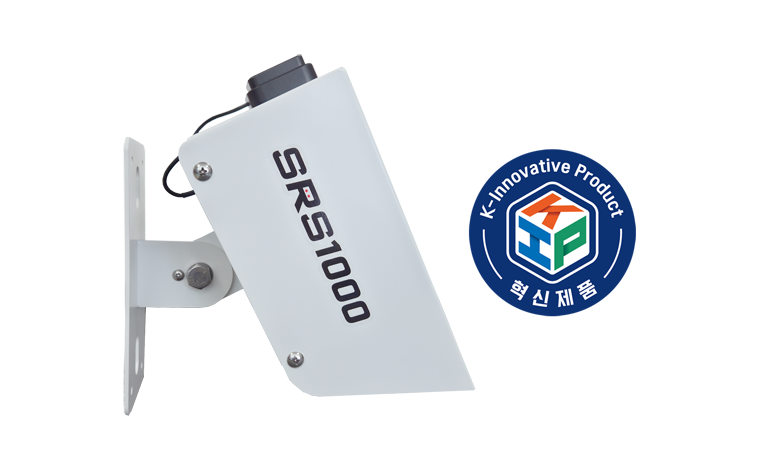

SRS1000 smart road sensor was selected as an innovative product under South Korea's government certification and public procurement programs.
SRS1000 uses IR detector which allows you to measure the road surface temperature accurately and it measures air temperature and relative humidity around the road by using a humidity and temperature sensor.
It can also measure snow height and provides information on black ice/ice, potholes and obstacles on the road.
With the help of a built-in range finder, SRS1000 can do more accurate measurement of road surface temperature and black ice/ice by eliminating the measured values over threshold caused by obstacles on the road.
Monitoring of all collected data on smartphone.

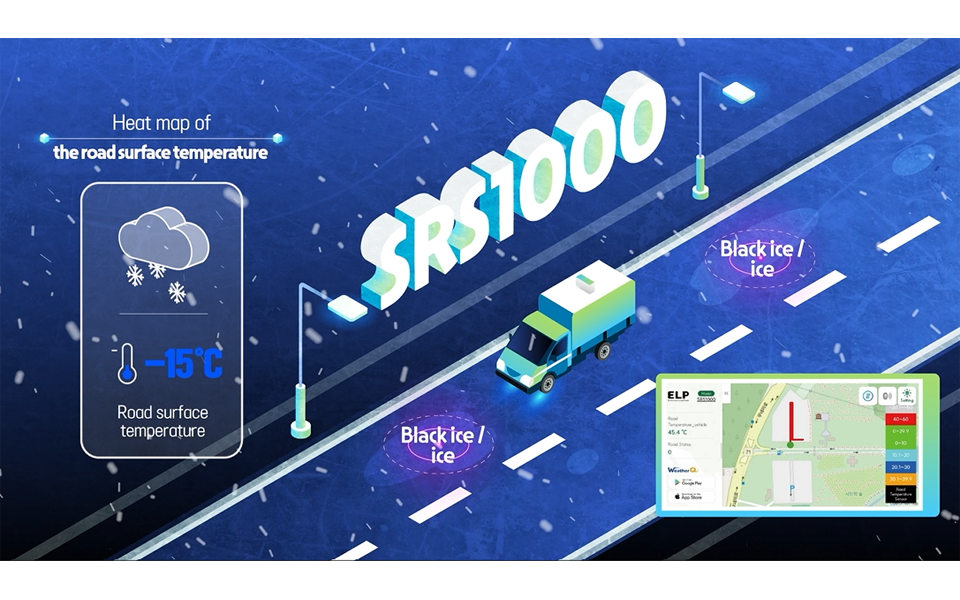

All observation data, which are transferred from SRS1000 to a smartphone via Bluetooth communication, can be monitored on a dedicated software ELPViewer in real time. And the heat map of road surface temperature and road condition information are visualized on a GIS map.
Features
• Measurement of road surface temperature, air temperature, relative humidity, dew point temperature and road condition(black ice/ice)
• Detection of obstacle and pothole
• Monitoring of all collected data on a smartphone
• Visualization of heat map of road surface temperature and road condition information on a GIS map
• More accurate measurement of road surface temperature and road conditions (black ice/ice) by eliminating the errors caused by vehicles, animals, any kinds of obstacles on the road(patent no.10-2524425)
• Accurate measurement of Available as fixed and vehicle mobile types

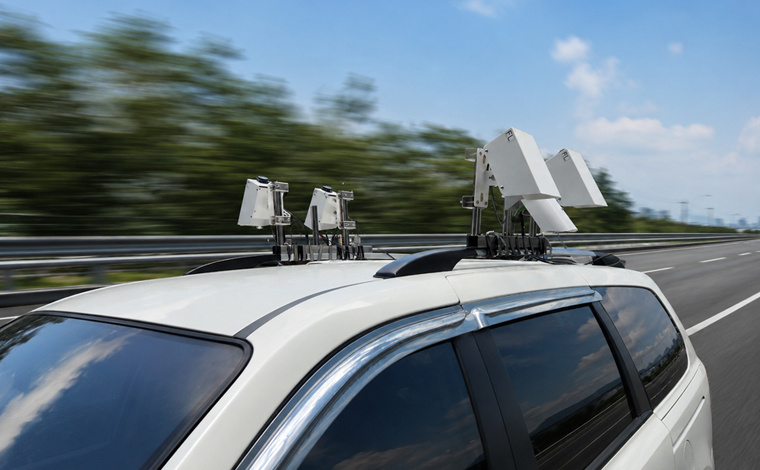

• Available as fixed and vehicle mobile types
• IP68 protection housing
Specifications
• Measuring parameters: road surface temperature, air temperature, relative humidity, dew point temperature, snow height
• Measuring range
- Road surface temperature: -40℃ ~ +85℃
- Air temperature: -40℃ ~ +85℃
- Relative humidity: 0 ~ 100%RH
- Dew point temperature: -40℃ ~ +85℃
- Snow height: 0 ~ 10m
• Accuracy
- Road surface temperature: ±0.3℃ (@ 0℃)
- Air temperature: ±0.3℃
- Relative humidity: ±3%RH (@ 0 ~ 90%RH)
- Snow height: ±3mm (@ a tilt angle of 30°)
• Road condition: black ice, ice, pothole, obstacle
• Interface: RS232, Bluetooth
• Power supply: typically 12VDC)
• Power consumption: <5W(@ 12VDC)
• Operating environment: -40℃ ~ +85℃, 0 ~ 100%
• KC certified
• Cable: 5m
